2D Beam Width Analysis

Line

RayCi supports several 2D techniques to determine the beam width of a laser beam. The customer can choose the best technique for their application. This extensive tool on beam width techniques is unique on the market for laser beam profiling.

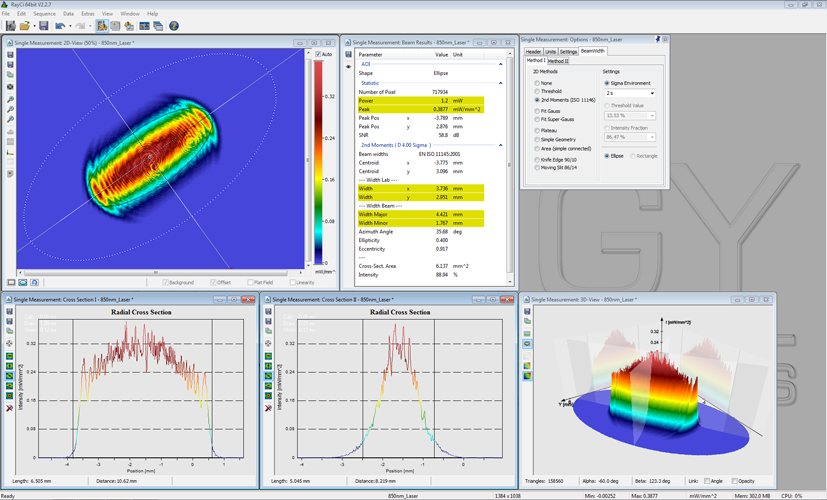

2nd Moments - MultiMode Beam

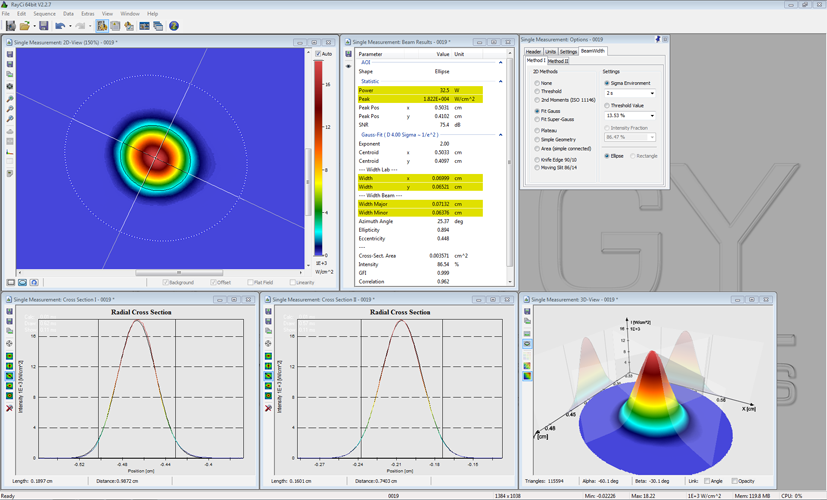

Gauss Fit - Gaussian Beam

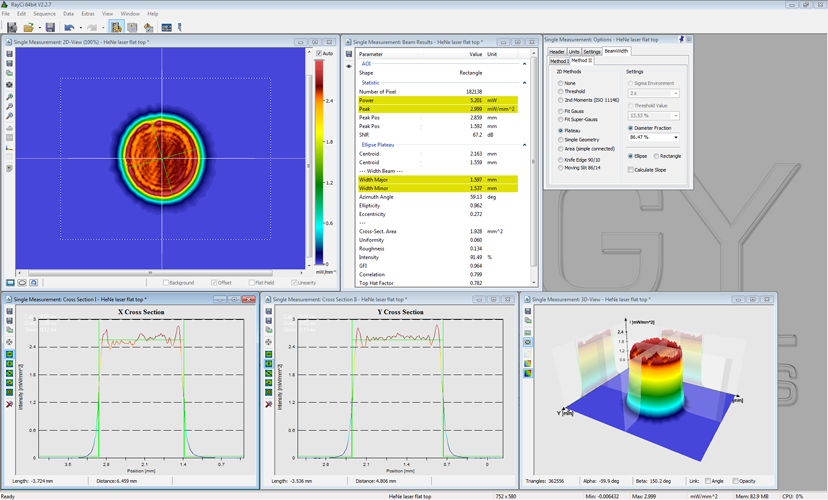

Plateau Fit - Flat-Top Beam

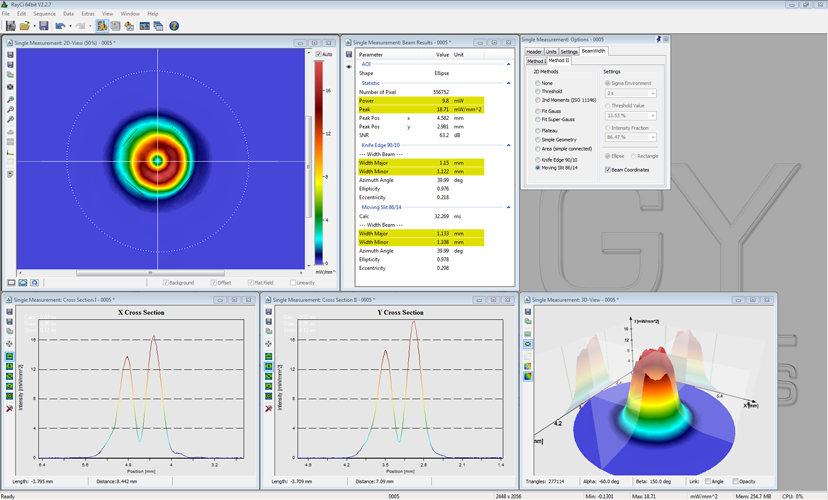

Knife Edge and Moving Slit - Doughnut Beam

2nd Moments (D4s)

Based on the ISO international standard definition for beam width. It describes the variance of the intensity distribution related to the Center of Gravity.

Gauss / Super Gauss

Based on a mathematical model to find the best fitting function for the two-dimensional intensity distribution of the beam.

Plateau / Geometry / Area

Based on a geometrical model to find the best fitting shape of the beam.

Knife Edge / Moving Slit

Based on classical measurements with knife-edge or moving slit.
