Measurement Tool - ISO Standard

Line

Snapshot / Single Measurement /Time Series:

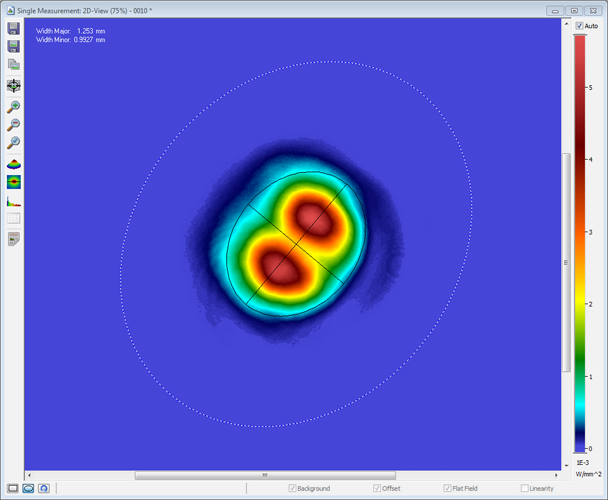

Single Measurement

- 2D-View / 3D-View / Histogram / Cross section
- Beam results (Beam width, Centroid,  etc.)
- Beam profiler dynamic visualization
- Printable protocol

- Multiple import and export formats

Pointing Stability:

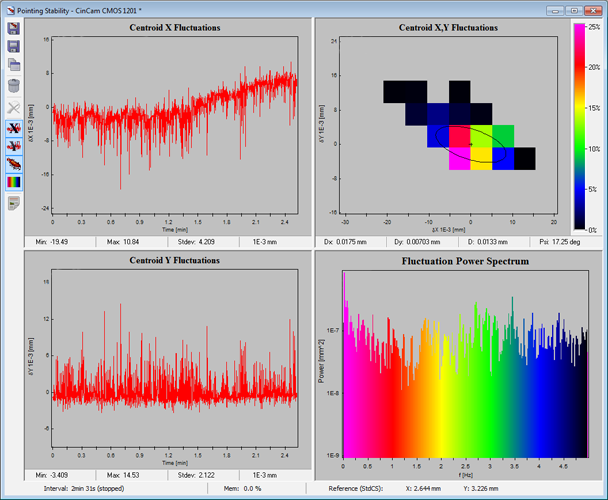

Pointing Stability Measurement

- Centroid fluctuations X /Y
- Centroid position analysis
- Power spectrum
- Printable protocol

-
Multiple import and export formats

Beam Stability:

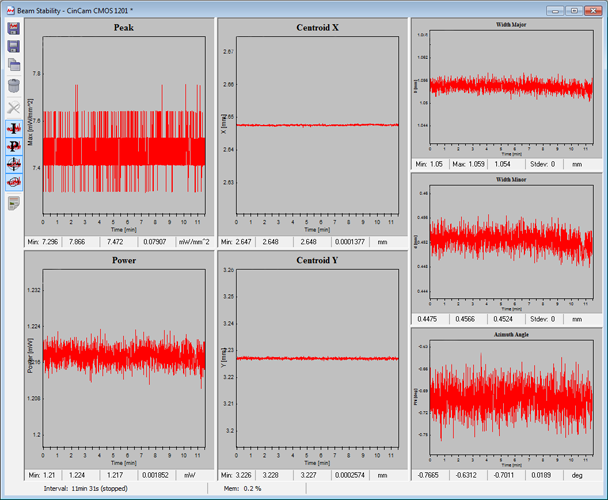

Beam Stability Measurement

- Power / Peak / Centroid / Beam width fluctuation
- Printable protocol

- Multiple import and export formats

Divergence Measurement:

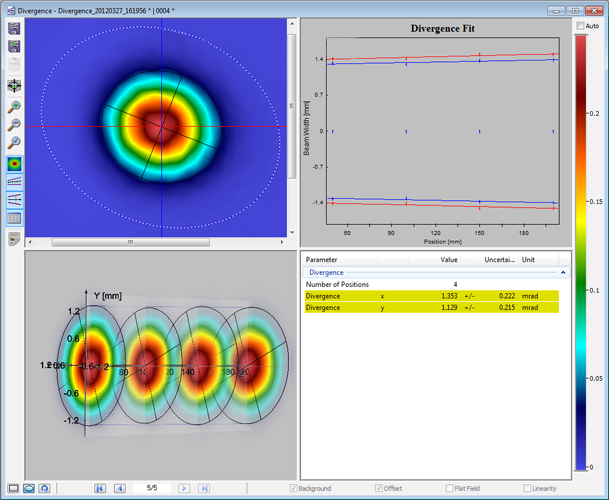

Divergence Measurement

- 2D-View / 3D-View / 3D-Fit / Divergence Fit
- Results (Divergence)
- Printable protocol

- Multiple import and export formats

Beam Quality M2:

Beam Quality M Measurement

- 2D-View / 3D-View / 3D-Fit / Caustic Fit
- Results (M, Beam waist, RayLeigh length, etc.)
- Printable protocol
- Multiple import and export formats
