UV-NIR Beam Profiler - CinCam

Line

CINOGY Technologies CinCam is optimized to provide excellent sensitivity from the UV to NIR spectral range involving CCD/CMOS/InGaAs technologies. Thanks to its high resolution and its small pixel size, the CinCam ensures the highest accuracy in laser beam analysis of cw and pulsed laser systems. The plug and play design facilitates easy and flexible adaption to standard optical components.

Spectral response:



<150 - 1150nm (1320nm) / 900-1800nm

Pixel size:



2.2 - 30µm2

Number of pixel:



0.1 - 16MPixel

Technology:



CCD / CMOS / InGaAs

Data output:



8Bit / 10Bit / 12Bit / 14Bit

Interface:



FireWire / GigE / USB

Software:



RayCi-Lite / RayCi-Standard / RayCi-Pro

Application Area:

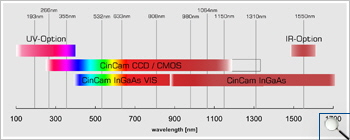

CinCam CCD/CMOS/InGaAs Sensitivity

Accessories:

- IR Option: IR Module / Sensor Coating
- UV Option: UV Sensor Coating / Sensor without Microlenses
- Neutral Density Filter (Uncoated / AR Coated)
- Attenuation Units
- Beam Reducer / Expander
